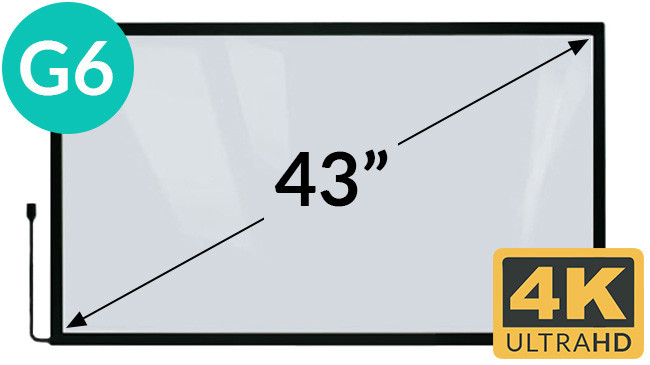

PQ Labs G6 4K Multi Touch Screen Overlay 43 inch

$686.00
SKU:
G6-4K-43-6
Weight:
12.00 LBS
Availability:
In Stock (Usually Ships in 2 to 3 Business Days)
Shipping:
$78.30 (Fixed shipping cost)
Quantity:

Product Description

RECOMMENDED: Please use 3M VHB Tape (5952)for a more secure and permanent installation.

Introducing Q-Force Technology

        Q-Force Technology senses the pressure you applied onto the display by adopting built-in force sensors around the screen. This enables pressure sensitivity for drawing & handwriting, and new possibilities with force sensitive UI interaction.

FingerID

With FingerID technology, G6 recognizes presenter's identity, and loads custom content based on presenter's ID. With the technology advantage of FingerID, PQ Labs MagicBoard software detects the presenter standing beside the big screen, and loads his documents from cloud service with encrypted credentials.



4K Touch Fidelity Breakthrough

Raising the bar of the Ultimate Touch Experience

  • Designed for 4K displays.
  • Smooth & high-precision multi-touch control.
  • Beautiful sketch & handwriting.

Detects 1.5mm Pen Tip

G6 series is able to detect pencil tips as passive pens.Capacitive Technology requires minimum 8mm in diameter.That's why the stylus are so thick and doesn't look like a pen.

Pen+Touch+Eraser

  • Use your finger for canvas manipulation and multi-touch.
  • Use your pen for creating content & taking notes.
  • Use eraser to modify content.
  • Works for OneNote, PowerPoint, Photoshop, MS-Paint...
  • * A Magnetic Eraser (sticks on metal frame) is shipped together with Active Pen.
    * Pen+Touch SDK will be available later.

Active & Passive Stylus

Any stylus can be used as a passive pen

The Active Stylus pen (with built-in battery) is pressure sensitive providing an enhanced drawing and writing experience similar to standard pen and paper.

Active Stylus

Warranty Information

1 Year Limited Manufactuer Warranty

Other Details

Product Dimensions:
38.52" x 22.36" x 0.34"
Touch Glass:
3mm Mighty Glass
Sample Rate:
Up to 250fps
Power Supply:
USB Powered
Interface:
USB 2.0
Programming Interface:
PQ Labs SDK / Windows Native Touch / TUIO
Waterproof:
Anti-Spill, customizable to IP66
Supported OS:
Windows 7 or later, Mac OS X
